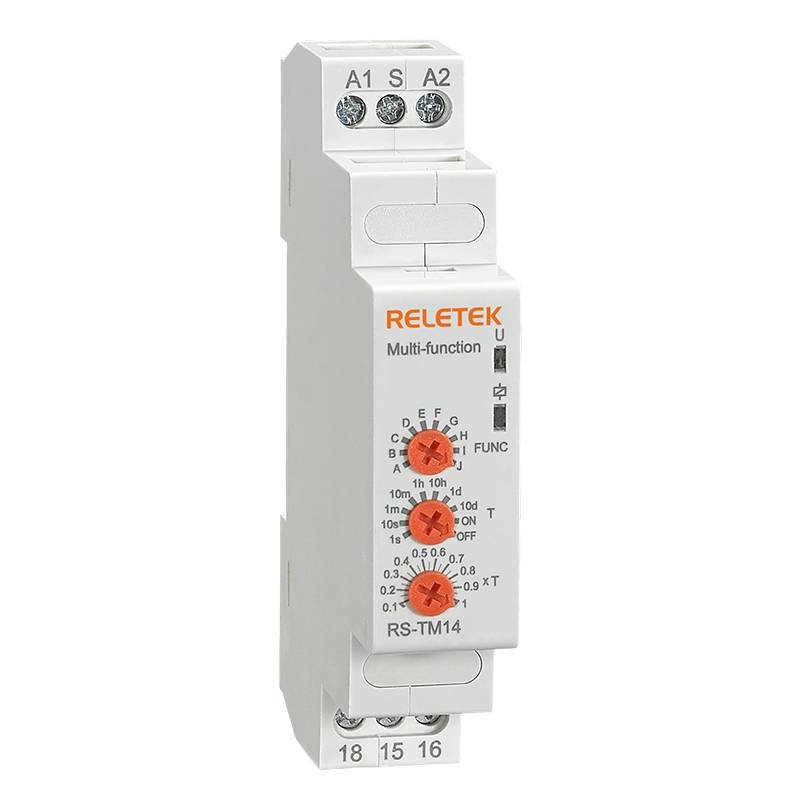

Multifunction time relay

RS-TM11/12
Microcontroller based
10 functions
10 time ranges(1s,10s,1m,10m,1h,10h,1d,10d,ON,OFF)
1 changeover contact
LED indication for power supply and relay status
1 Module Din-rail mounting

Time relays are used to time control of industrial and domestic automatic control systems.

Operation mode: 10functions

Technical data


Models

RS-TM14

RS-TM13

RS-TM23

Supply terminals

A1,A2

Pulse terminal

S

Supply voltage

AC/DC 12-240V

AC/DC 24-240V

Rated frequency

50/60Hz

Time range

0.1 s-10days

Setting accuracy

<5%

Repetition accuracy

<0.2%

Output contacts

1 C/0

2C/0

Current rating

8A /AC1

Contacts capacity

AC-15: 2A

Insulation voltage

250V

Protection degree

IP20

Pollution degree

3

Electrical life

105

Mechanical life

106

Altitude

≤2000m

Ambient temperature

-5℃~+40℃

Storage temperature

-10℃~+50℃

Wire size

0.5mm2~1 mm2

Torque

0.5Nm

Mounting

TH-35 DIN-Rail


Front-face panel



Time range



Wiring diagrams



Function diagrams
