Latching(memory) relays

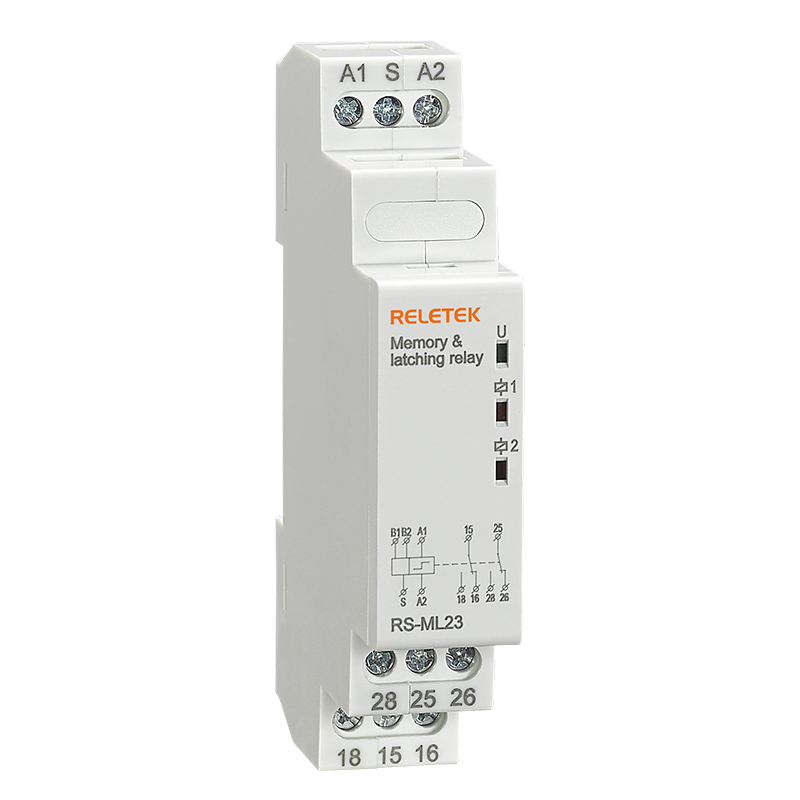

RS-ML13/RS-ML23
Microcontroller based
Memory relay
AC/DC 24-240V universal voltage
Function seleced via external jumper between B1-B2
LED indication for power supply and relay status
1 Module Din-rail mounting
The relay is used to control lighting or other devices from different location. Pushing any button causes switching on or switching off the devices connected to output terminals.

Technical data


Models

RS-ML13

RS-ML23

Supply terminals

A1,A2

Pulse terminal

s

Supply voltage

AC/DC 24- 240V

Rated frequency

50/60Hz

Supply indication

green LEO

Output indication

red LED

Output contacts

1 C/0

2 C/0

Current rating

10A/AC1

Contacts capacity

AC-15: 3A

Insulation voltage

250V

Protection degree

IP 20

Pollution degree

3

Electrical life

105

Mechanical life

106

Altitude

≤2000m

Ambient temperature

-5~+40

Storage temperature

-10 ~+50

Wire size

0. 5mm2~1 mm2

Torque

0.5Nm

Mounting

TH-35 DIN-Rail


Front-face panel
