Temperature regulators

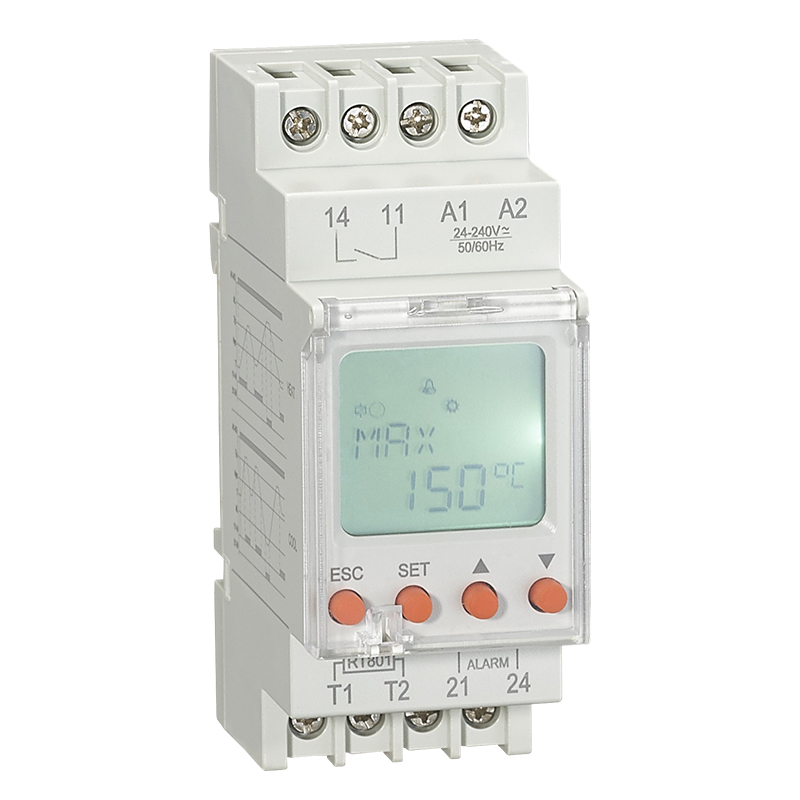

RD-TRS130
Microcontroller based
Heating/cooling operating modes selectable
LCD display operating modes, set and operating temperature
Temperature measurement range -25°C~130°C
Alarm function
Auto-reset
Easy to set with keys
AC/DC 24-240V wide input range
2 module Din-rail mounting
The temperature regulaotor is used to control heating and ventilation equipment to maintain a constant temperature.

Technical data


Supply terminals

A1-A2

Supply voltage

AC/DC24-240V

Rated frequency

50/60Hz

Power consumption

1.5W

Measuring terminals

T1,T2

Alarm terminals

21.24

Output terminals

11.14

Temperature range

-25~130℃

Hysteresis

1~30℃

Correction range

-9~9℃

Setting step value

1℃

Display

LCD with backlight

Output contact

1NO

Current rating

16A/250V AC1

Switching capacity

4000VA/AC1,300W/DC

Alarm current rating

2A/250V AC1

Protection degree

IP20

Pollution degree

3

Electrical life

105

Mechanical life

106

Altitude

≤2000m

Ambient temperature

-20℃~+55℃

Humidity

≤50% @ 40℃(without condensation)

Storage temperature

-30℃~+70℃

Wire size

0.5mm2~1mm2

Torque

0.5Nm

Mounting

TH-35 Rail

Temperature sensor



Model

RT801

Measure element

KTY81-210

Sensor dimensions

ф6mmx50mm

Sensor material

Stainless steel

Cable size and length

2×0.3mm2/2.5m

Cable material

Silicone


Operating instruction



Function diagrams



Wiring diagram
