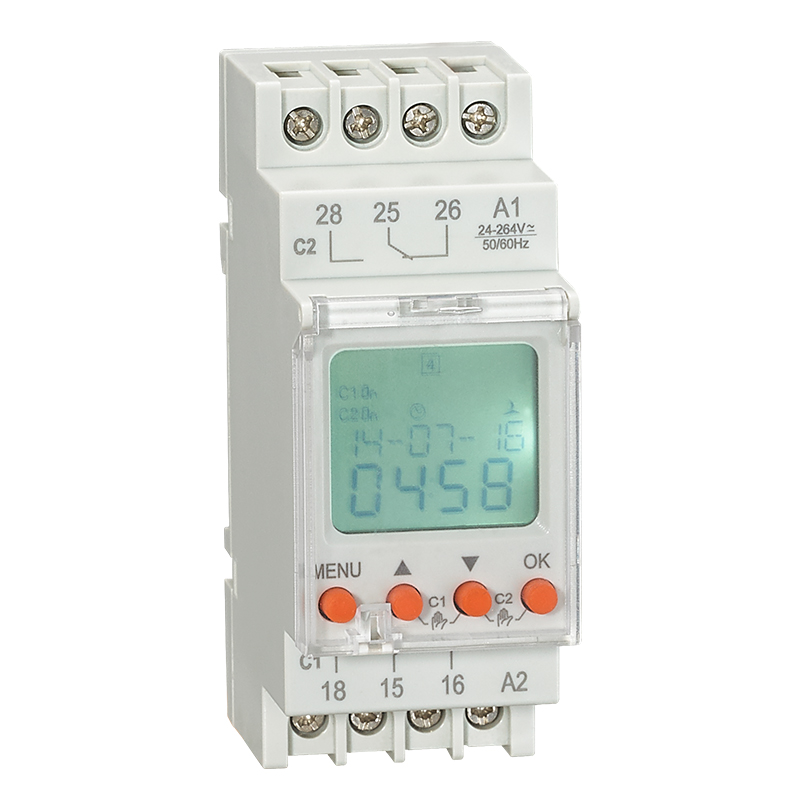

Double channel multifunction time switch

Astronomical and annual programs
10 year power reserve(lithium battery)
80 programs
Sealable cover of the front panel, easy setting by 4 keys.
Automatic summer/winter time switchover
Back-lighted LCD display(can be turned off)
Holiday mode.
Random mode
2 channels (each channel can be assigned an individual program)
Automatic transfer of weekdays
24-264V AC/DC input supply.
2 module Din-rail mounting
RD-TPM series multifunction time switch is for realization of time functions in the systems of automatics and steering. It calculates the sunrise and sunset time automatically according to the set geographic position and time zone, without the use of a photocell sensor.
There is an internal battery which can protect real time clock and all the settings when the electric power supply is off.
