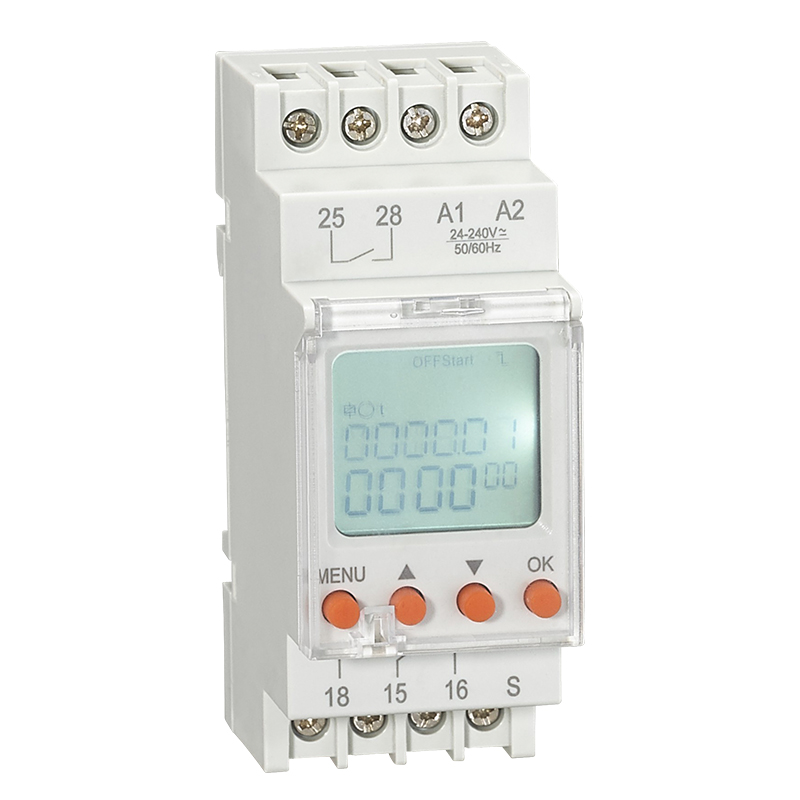

Digital multifunction time relay

RD-TMS1
Microcontroller based
LCD display for functions,set delay and operating time 24 functions
Time range:0s-99h59min59sec.
AC/DC 24-240V supply voltage
1C/O+1NO contacts
Backlighted LCD display
Easy setting by keys
2 module Din-rail mounting

Time relays are used to time control of industrial and domestic automatic control systems.

Operation mode: 24functions

Technical data


Supply terminals

A1,A2

Pulse terminal

S

Supply voltage

AC/DC 24-240V

Rated frequency

50/60Hz

Time range

0s-99h59min59sec

Repetition accuracy

max.±3s/24h 25

Data readout

Back-lighted LCD display

Data storage

10 year

Output contacts

1 C/0+1NO

Current rating

8A /AC1

Contacts capacity

AC-15: 2A

Insulation voltage

250V

Protection degree

IP20

Pollution degree

3

Electrical life

105

Mechanical life

106

Altitude

≤2000m

Ambient temperature

-5℃~+40℃

Storage temperature

-10℃~+50℃

Wire size

0.5mm2~1 mm2

Torque

0.5Nm

Mounting

TH-35 DIN-Rail
